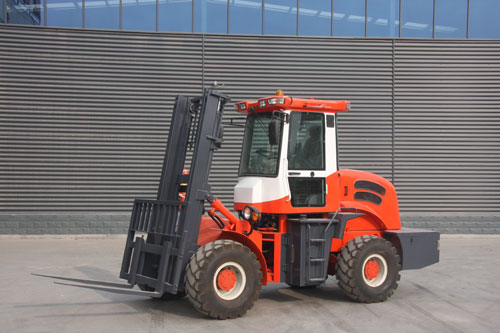

SZM C3500
类别：SZM C3500 作者：guanli 日期：2014/7/16 15:03:26
|
参数Parameters |
C3500 | |
|
速度Speed |
行驶速度Driving speed |
25km/h |
|
起升速度Lifting speed |
300mm/s | |
|
举升速度Lifting height |
4000mm | |
|
##爬坡度Max. ground ability |
20% | |
|
整机重量Operating weight |
4840Kg | |
|
轮胎Tyre |
前轮Front wheel |
8.25R16 |
|
后轮Rear wheel |
14.-17.5 | |
|
前轮距FRONT Wheel tread |
1750 mm | |
|
后轮距REAR Wheel tread |
1510mm | |
|
轴距Wheel base |
2300mm | |
|
##小离地间隙Min. Ground clearance |
300mm | |
|
蓄电池Battery |
24V | |
|
发动机Engine |
WEICHAI 4102增压 | |
|
发动机功率Engine power |
63kw/2400rpm | |
|
外形尺寸Overall dimension 不含货叉 |
4300*2000*2750 | |
|
概况Overview |
||
|
动力形式Power mode |
柴油Diesel | |
|
额定载荷Rated load |
3500kg | |
|
载荷中心距Load center distance |
500mm | |
